Rivenhall IWMF, Essex, UK

About the Project

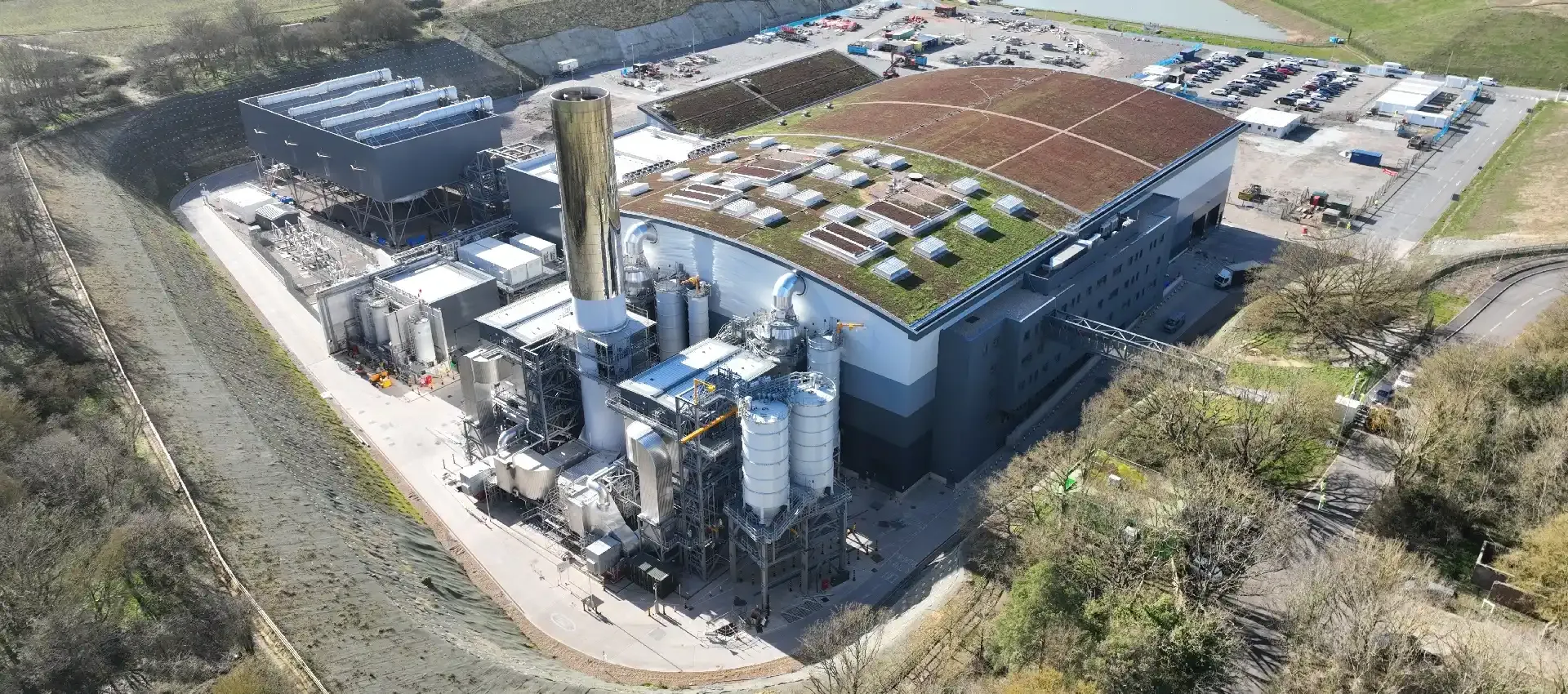

Located near Kelvedon in Essex, and built on the site of a former quarry, the Rivenhall Integrated Waste Management Facility was developed by Indaver Rivenhall Limited and designed and built by Kanadevia Inova. As one of the UK’s newest Waste to X facilities, the plant is set to deliver substantial environmental and energy benefits to the county of Essex and surrounding regions.

The plant will generate 55 MW of electricity, enough to power more than 125,700 UK homes.

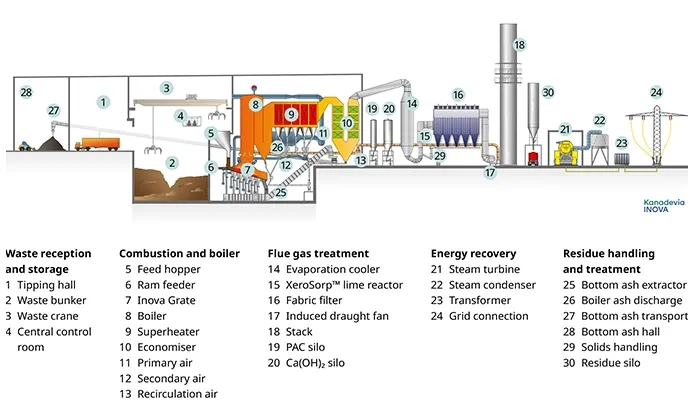

Diagram of a waste management facility with labeled sections for reception, combustion, flue gas treatment, energy recovery, and residue handling.

Waste throughput

595,000 t/a

non-recyclable municipal and commercial waste

Electric power generation

55 MW

Steam parameters

75.00 bar / 440°C

at boiler outlet

Solution

The first WtX facility in Essex, UK

Facts:

Built below ground level to minimise the impact on the neighbouring environment
Equipped with an air-cooled Kanadevia Inova grate
Fuel: non-recyclable municipal and commercial waste
Number of lines: two
Flue gas treatment: Dry Sorption Reactor, Fabric Filter, SNCR, Heat Exchanger, Evaporation cooler
