Full-service offering
Feed Hopper

Introduction

A full-service replacement and upgrade package for existing Waste to Energy facilities

The Feed Hopper of Kanadevia Inova is a comprehensive retrofit offering designed to improve the reliability, service life, and maintainability of existing waste feed systems in Waste to Energy plants. Combining advanced engineering with a service-oriented delivery approach, the solution minimises operational risks while extending asset lifetime and enhancing plant availability.

Our Feed Hopper is specifically developed for Waste to Energy operators seeking to modernise ageing feed systems, improve operational performance, and secure long-term plant reliability without extensive modifications to existing infrastructure.

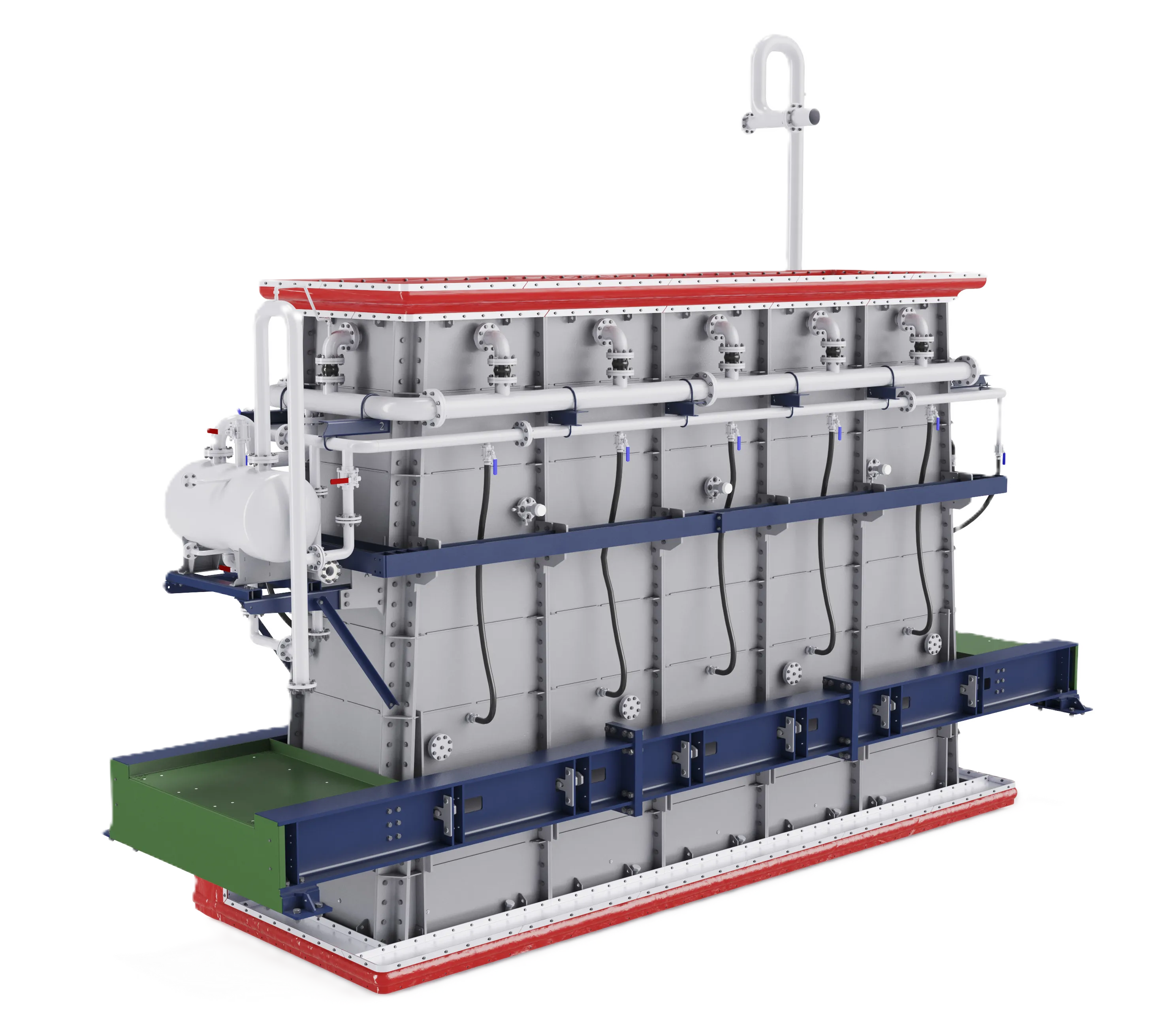

Feed Hopper_web-2

Key benefits at a glance

  • Increased plant availability through reduced blockages and improved cooling reliability

  • Extended equipment lifetime through optimised thermal and wear protection

  • Lower maintenance costs due to modular replaceable panels

  • Reduced outage duration and faster service interventions

  • Full-service execution from engineering and manufacturing to installation and commissioning

Pulse 360_loving people_AdobeStock_1885145420_small

Details

Better availability

The feed hopper incorporates a patented wear plate design without horizontal seams, significantly reducing the risk of waste accumulation and blockages. This results in smoother waste flow and fewer operational interruptions. In addition, the modular cooling structure provides more reliable and consistent cooling performance, ensuring stable operation under demanding plant conditions.

Longer lifetime

The optimised hopper design reduces thermal stress by minimising blockages and the associated risk of backfires. All welds are located outside the high-temperature zone, protecting critical structural connections from thermal fatigue. Direct cooling of the wear plates lowers wear rates and prolongs component life, while the support frame is positioned outside the thermally affected area, reducing exposure of approximately 30% of the structural material to damaging temperatures. Together, these features significantly increase the overall service life of the hopper.

Maintenance efficiency and friendliness

The modular panel design enables individual sections to be replaced without dismantling the entire hopper. This simplifies maintenance activities, reduces downtime, and lowers lifecycle costs. Maintenance teams benefit from improved accessibility and faster replacement procedures, helping plants return to operation more quickly.

Impressions of a real installation

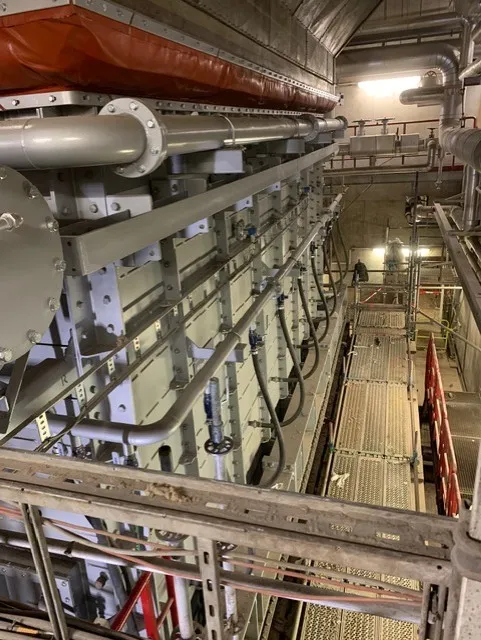

Feed Hopper_reference-1

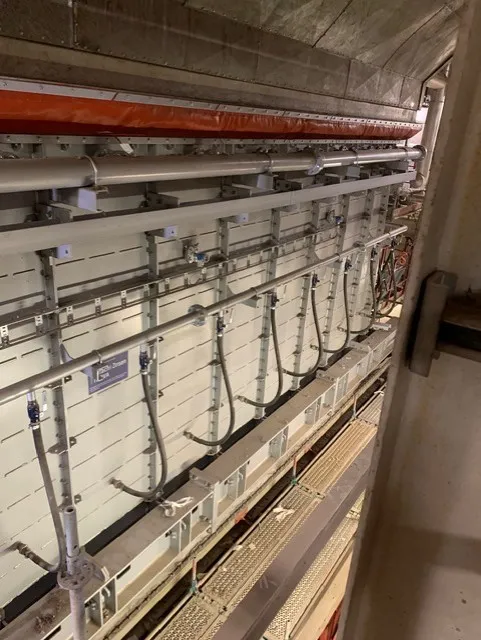

Feed Hopper_reference-2

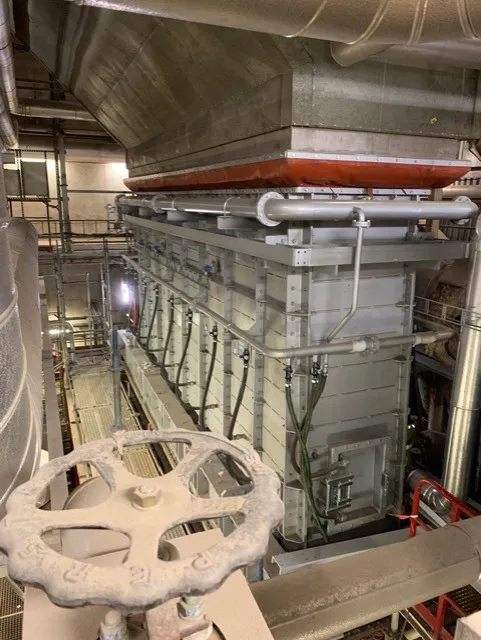

Feed Hopper_reference-3
