Flue Gas Treatment
High performance fabric filter

Kanadevia Inova developed its fabric filter to remove solids (dust) from the flue gas. It’s a physical separation process where the solids are filtered out at the surface of a gas-permeable fabric. If the fabric filter is used in a dry (XeroSorp process) or semi-dry (Kanadevia Inova SemiDry) sorption process, a filter layer of reagents and fly ash forms on the filter bags, where pollutants are separated out.

The filter is designed to be as cost-effective and environmentally friendly as possible. The latest version meets all the different legal regulations and customer requirements that an efficient, state-of-the-art flue gas system for waste-to-energy applications is expected to fulfil.

Advantages

  • Small footprint thanks to long filter bags (up to 9m) and asymmetric positioning of bags in each filter chamber

  • High plant availability, as the filter chambers can be individually isolated during full-load operation to check for defective filter bags

  • Fully automated filter control and cleaning enables highly efficient cleaning and reduces power consumption for compressed air

  • Filter bags specifically designed for long life and effective cleaning

  • Better SO2 resistance, with a minimal filter cake remaining on the surface during the cleaning process

  • Ready for future carbon capture integration, as low PM2.5* is already assured

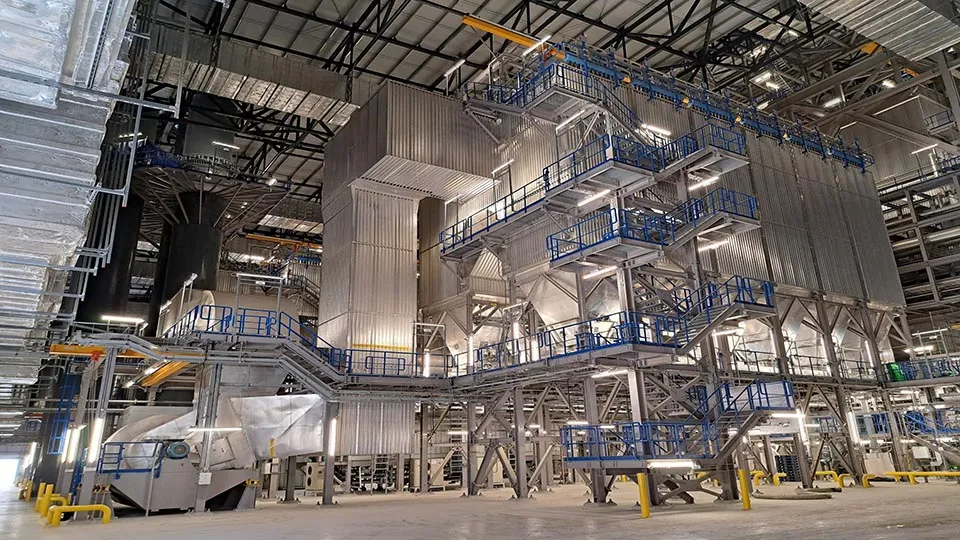

Fabric filter
