Jet360 nozzle
Made for spray cleaning systems
HERACLES™ Jet360 nozzle
Superior cleaning | Higher efficiency | Extended service life
:quality(80))
Introduction
In waste-to-energy (WtE) boilers, ash deposits in the radiation passes reduce heat transfer, increase corrosion risk, and can cause unplanned shutdowns for manual cleaning. Our rotating nozzle is engineered to deliver highly effective, uniform cleaning, even in the most challenging conditions—offering better cleaning performance and longer service life than existing systems.
High-performance design
The nozzle is the heart of the radiation pass cleaning system, vital for optimal fluid distribution and cleaning performance. It uses a dual-action cleaning mechanism that combines mechanical impact with thermal effect. Its gearless, water-powered drive system is designed to operate at low rotation speed. It therefore ensures minimum water atomisation, maximum impact energy, and extended cleaning performance. Its compact design fits most boiler types and allows upgrading existing spray cleaning systems at minimum cost.
Maximum cleaning coverage
The Heracles™ Jet360 nozzle is designed to thrive with two cleaning planes to guarantee the best cleaning performance.
Rotating nozzle for uniform cleaning across the entire radiation pass section.
Eliminates “uncleaned zones" that standard nozzles leave behind.
Low rotation speed for minimum water atomisation and maximum cleaning performance.
Equipped with four horizontal water jet nozzles.
Two optional upward-directed water jet nozzles extend the cleaning range and performance.
Benefit: Thorough cleaning of every square centimetre of the heating surfaces improves heat transfer and maintains boiler efficiency.
:quality(80))

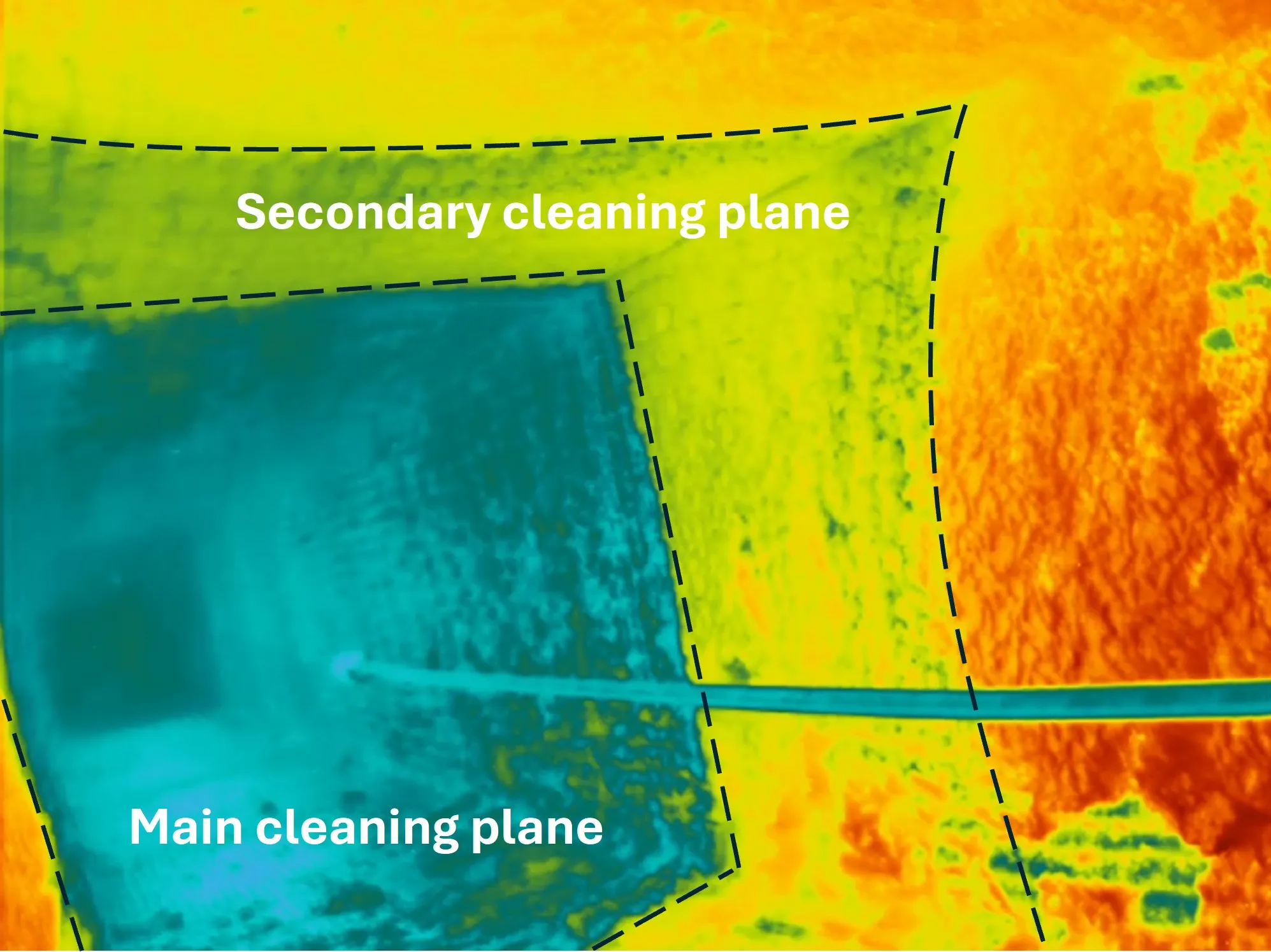

The infrared camera view shows the effect of the Jet360 nozzle jets on boiler walls. The cooling effect is visible in blue, while fouling shows in red.
Features and benefits

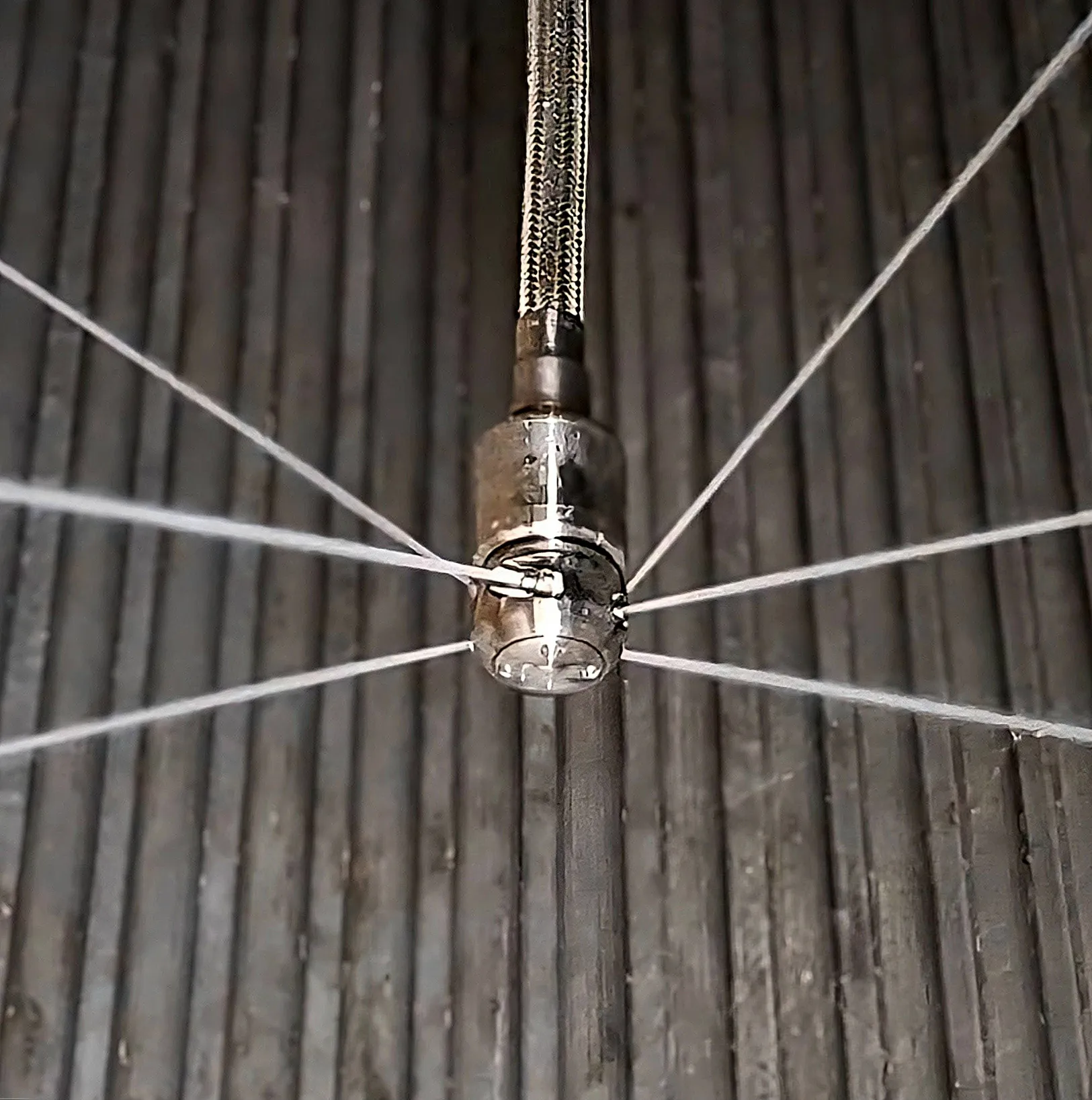

The Jet360 head is equipped with four horizontal water jet nozzles and two optional upward-directed water jet nozzles, which extend the cleaning range and performance. The rotation of the Jet360 unifies the cleaning across the entire radiation pass section and eliminates cleaning patterns that are normally left behind.
The advanced water nozzle has high-impact water jets at multiple angles, breaking up sticky, sintered, and low-melting ash deposits. This allows longer operating intervals, reduced wear and tear, and minimum water costs.
The controlled rotation spreads narrow water jets across heating surfaces, reducing water atomisation and evaporation to a minimum. This leads to lower water consumption per cleaning cycle compared to existing nozzles, and it reduces disturbance to combustion controls, allowing a more stable operation of your boiler and minimising thermal stress in the radiation passes.
The Jet360 is built from high-grade, heat- and wear-resistant materials and features a "curtain cooling concept (3C)” that reduces thermal stress in the nozzle during operation, even under harsh conditions. The gearless, water-powered drive system stands for low maintenance needs (patent pending). The rotation of the Jet360 ensures hose stability, preventing it from swinging in the boiler and reducing mechanical stresses.
The Jet360 is compatible with most of the existing spray cleaning systems. The compact design enables seamless integration with a wide range of boilers and minimal installation costs, and allows you to upgrade your spray cleaning system quickly, since installation can take place during operation and does not require a shutdown. The nozzle orifices and drive system can be adjusted to match your boiler characteristics while minimising operational costs

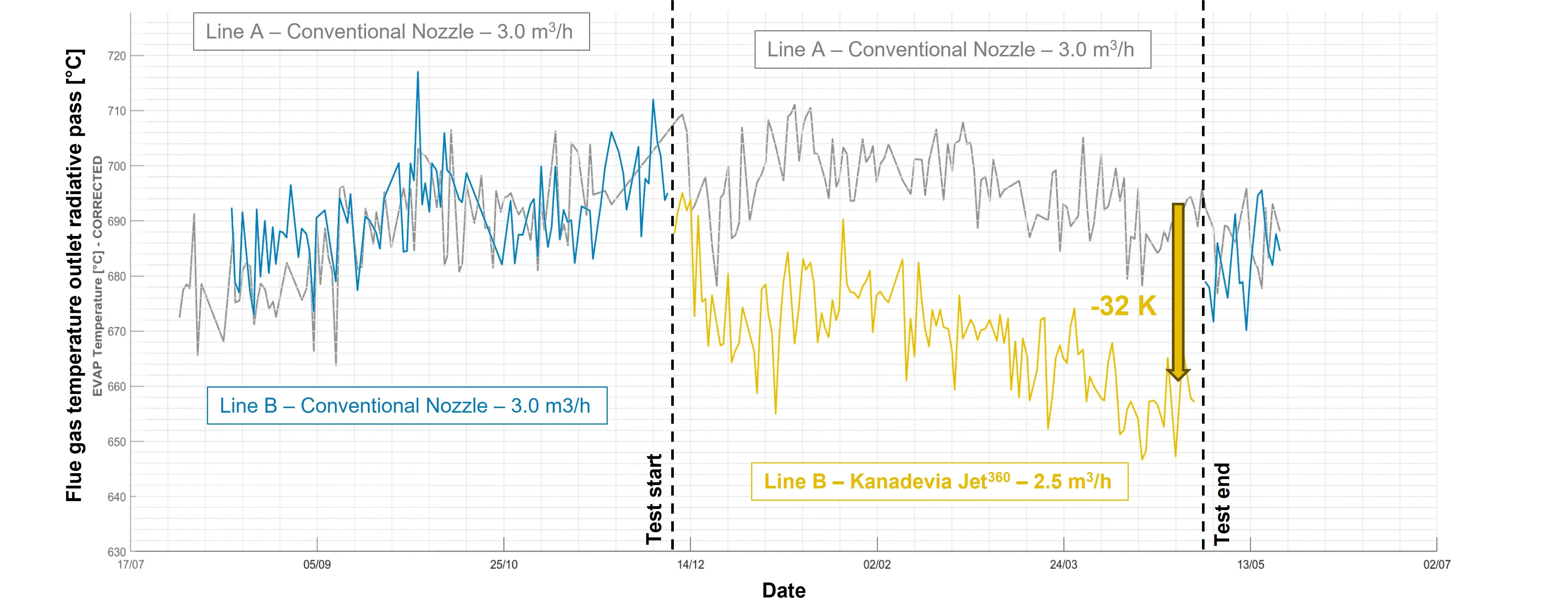

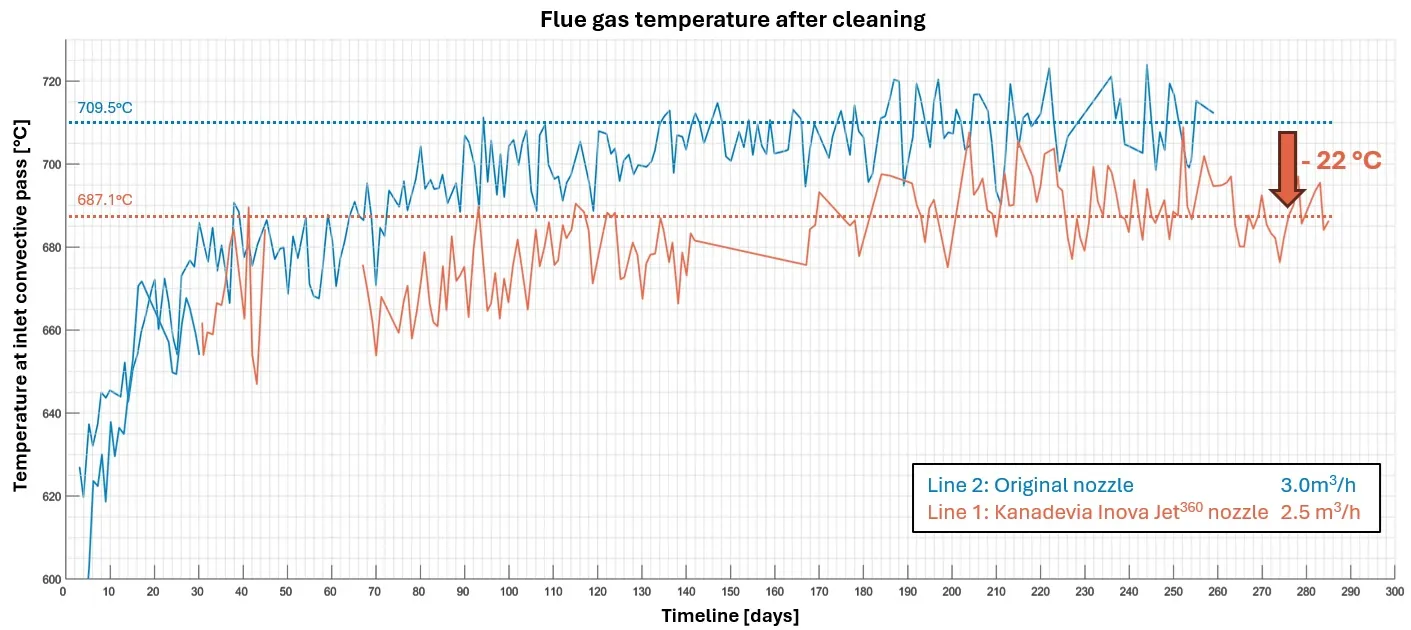

Customer success
:quality(80))

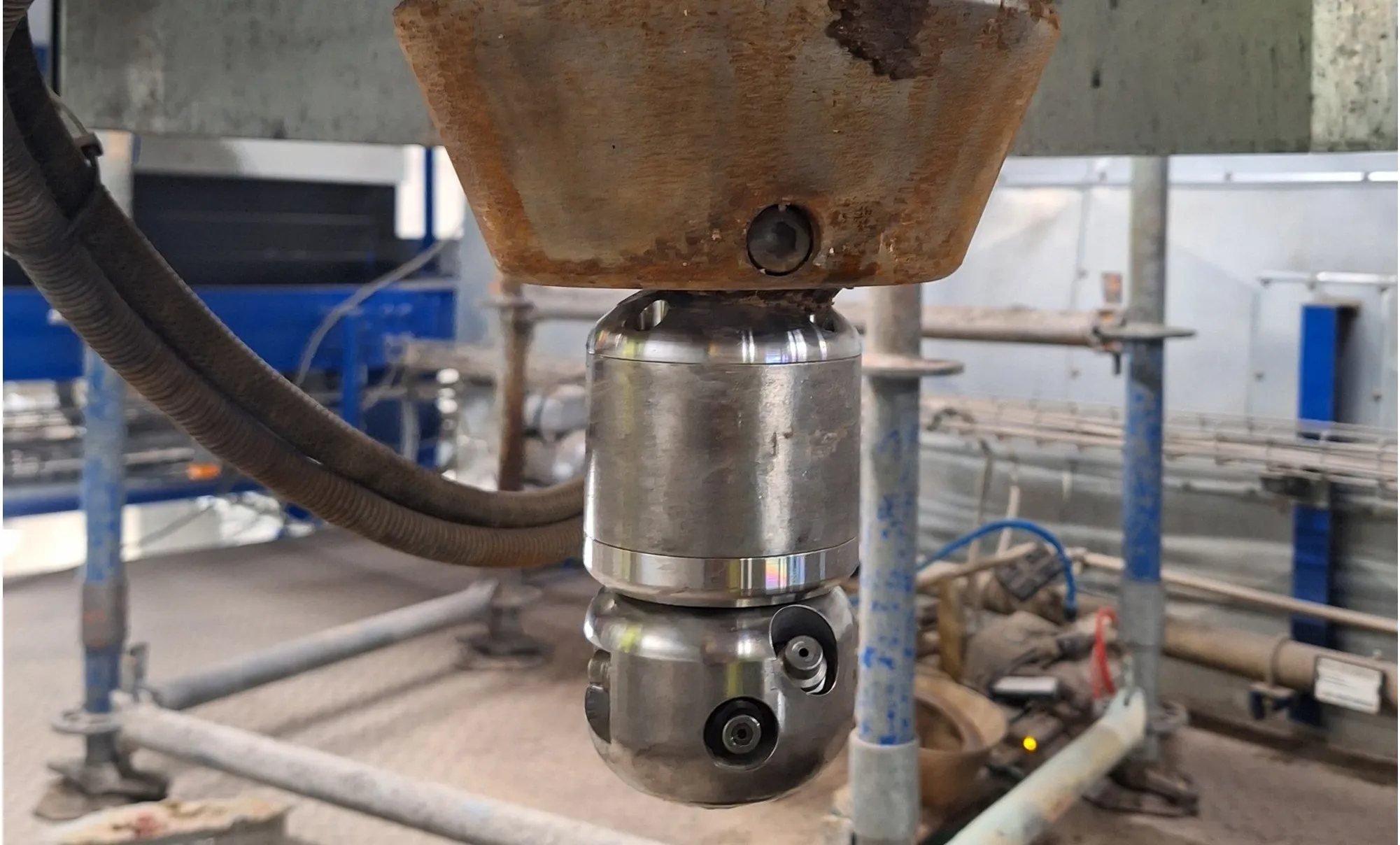

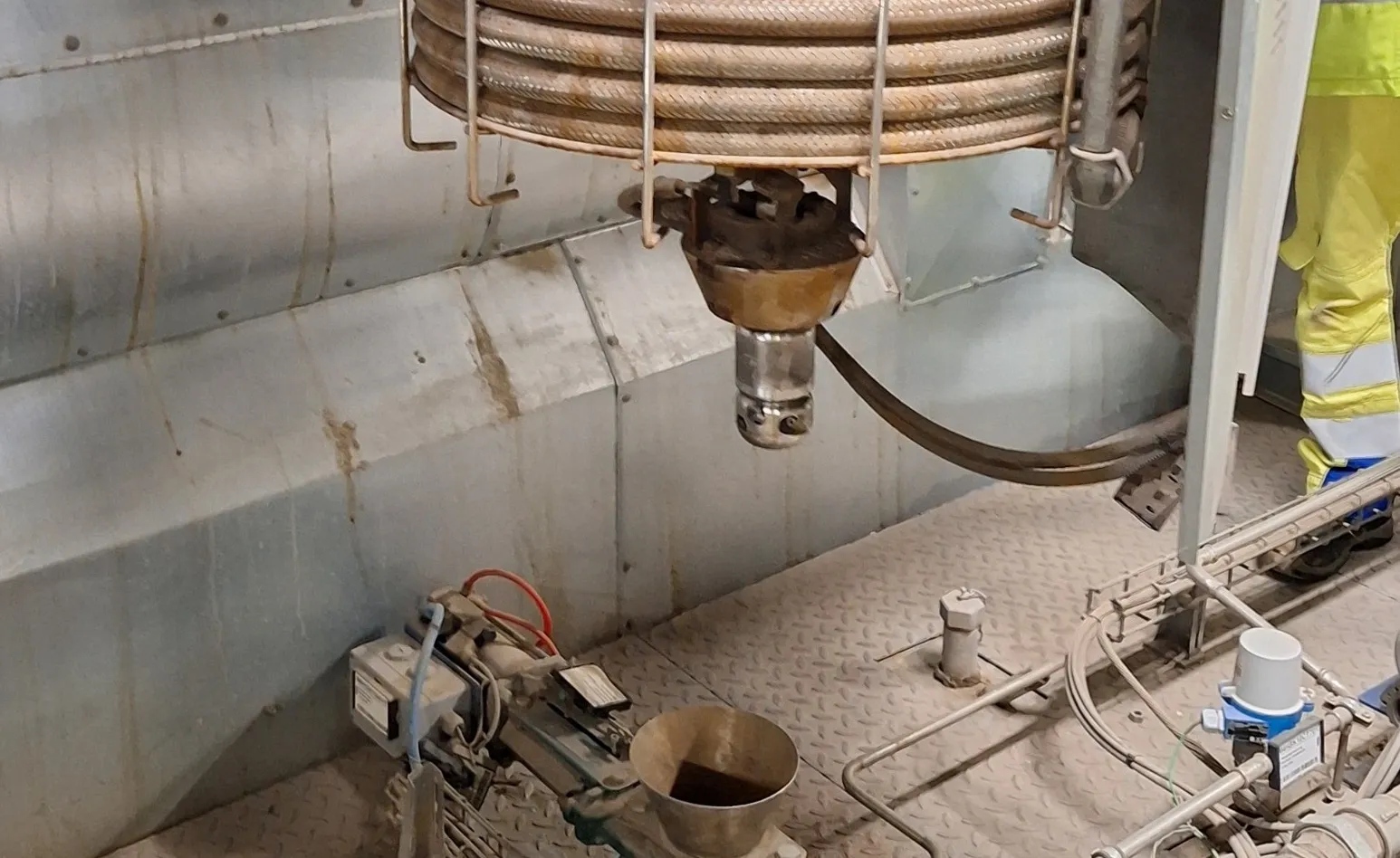

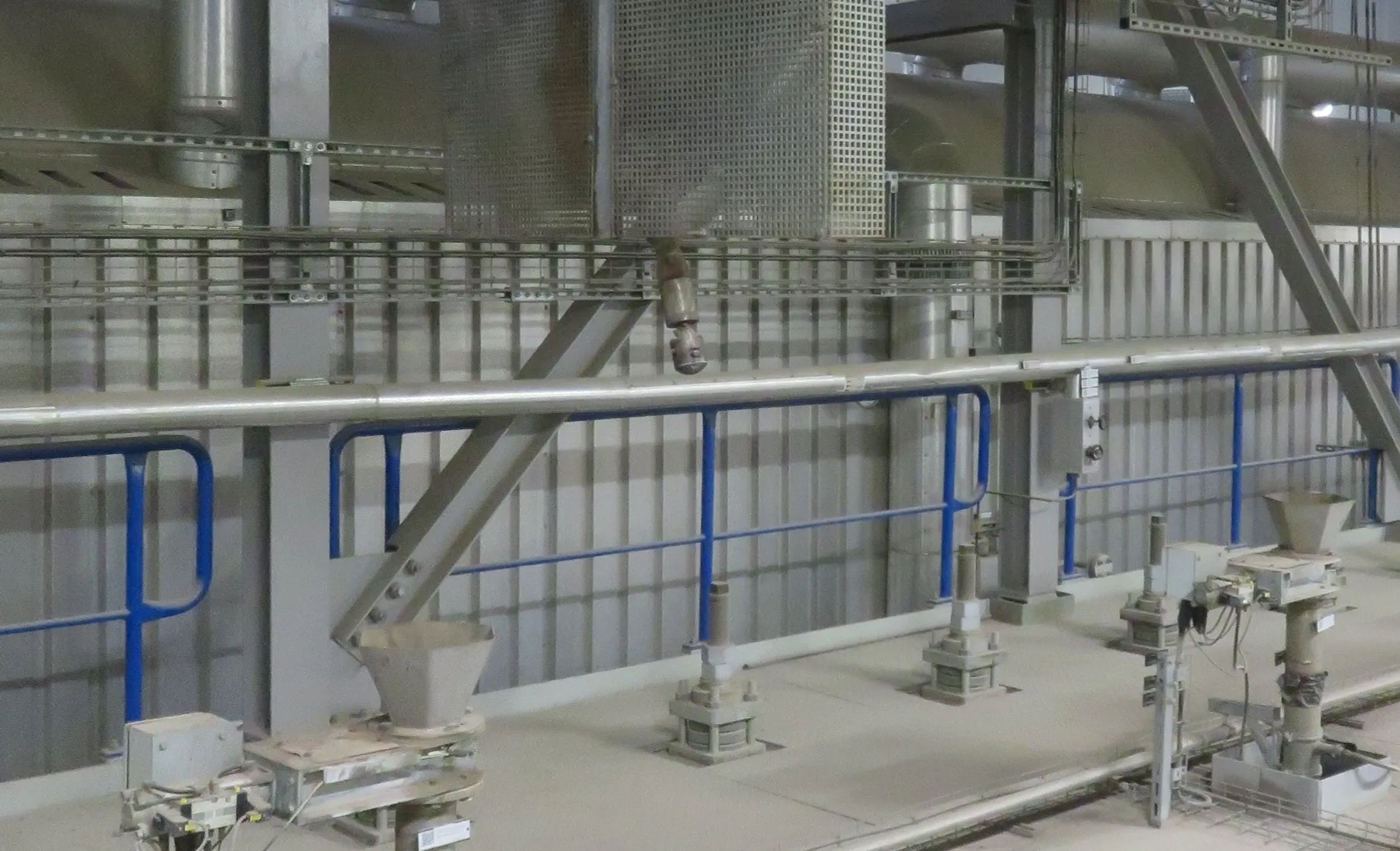

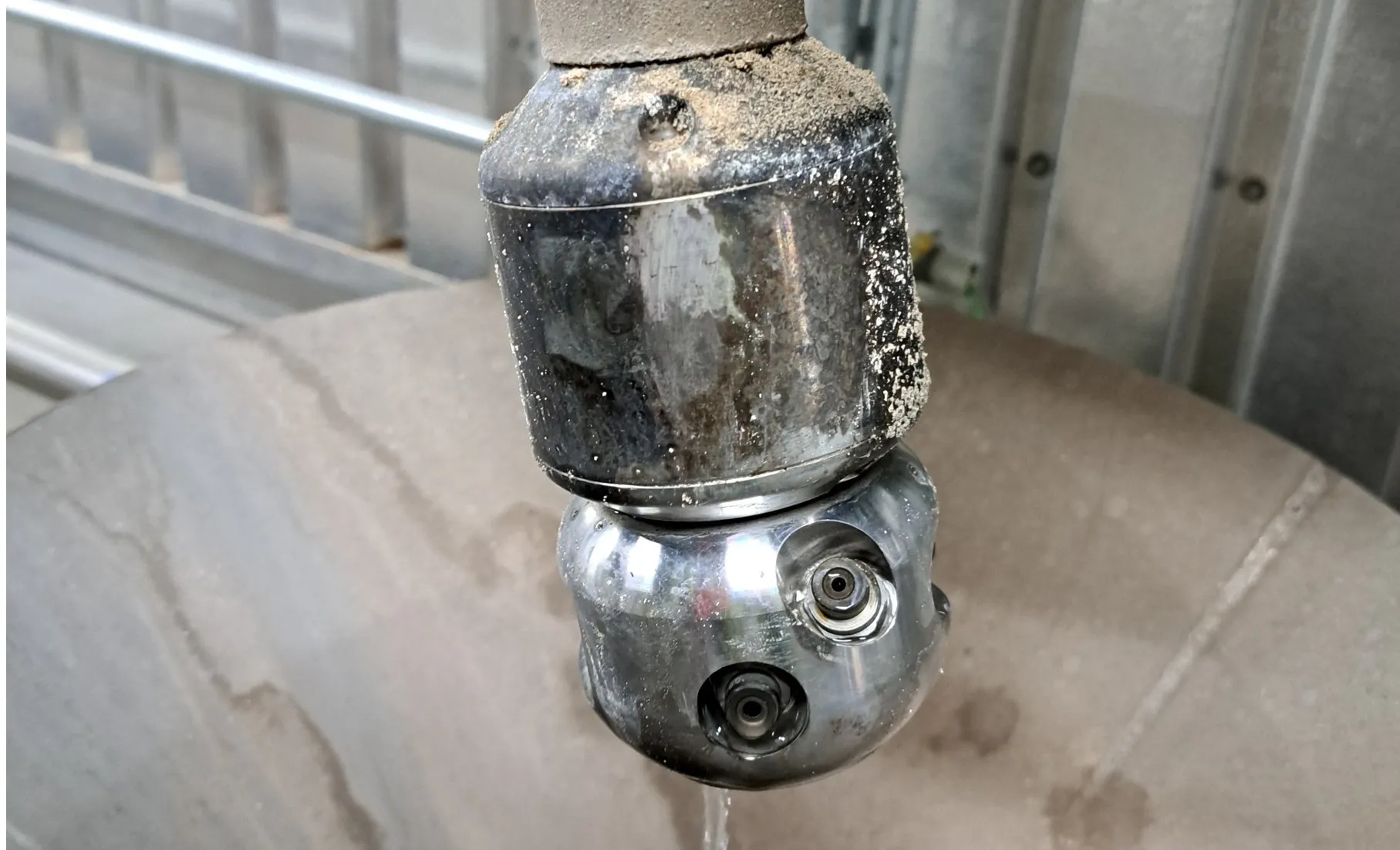

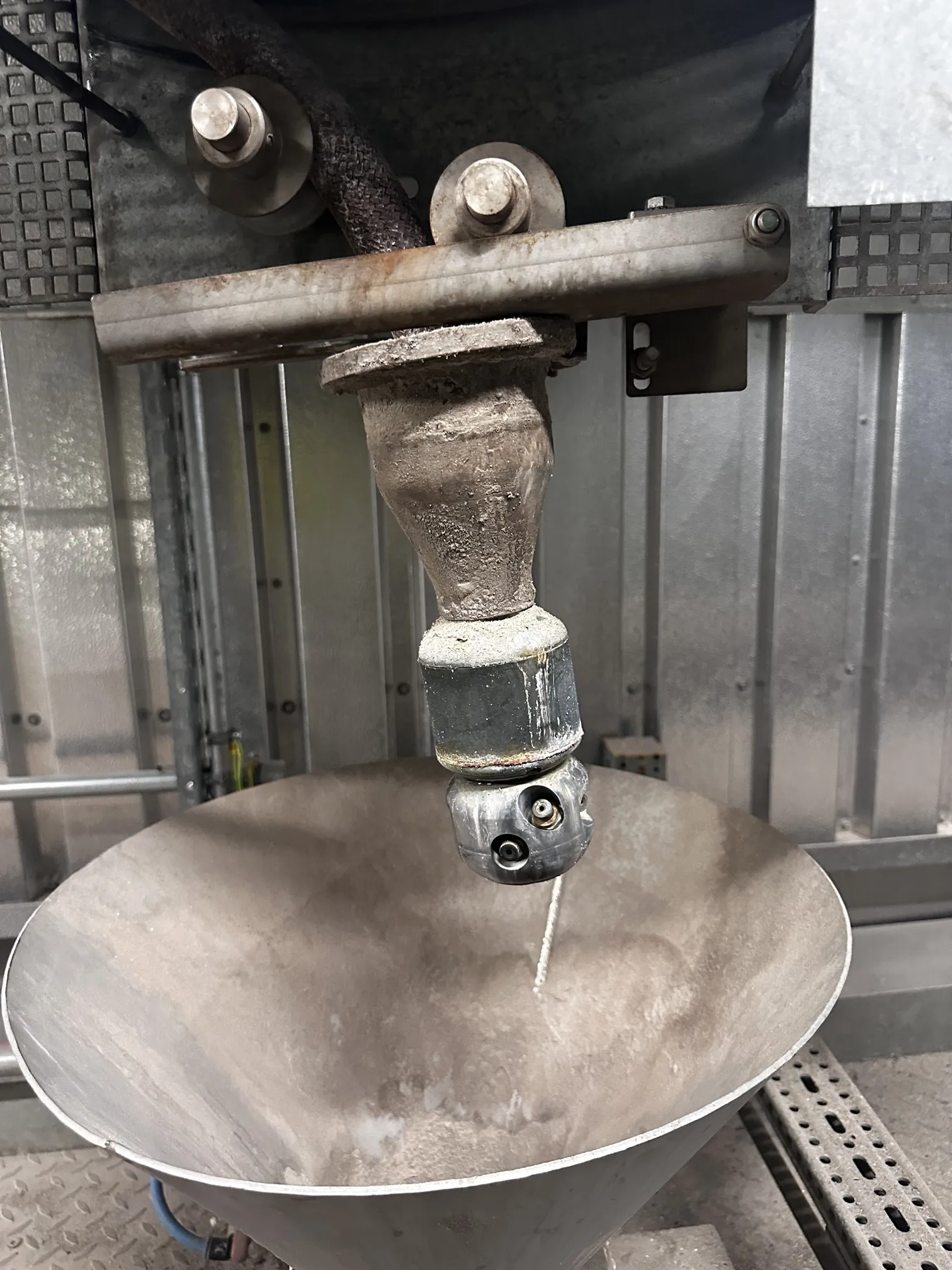

Impressions from real installations
:quality(80))
:quality(80))
:quality(80))
:quality(80))
Upgrade your boiler cleaning system today
:quality(80))
Heracles™ Jet360 nozzle
Don't settle for incomplete cleaning, lower efficiency, or frequent hose replacements. Our rotating nozzle combines superior cleaning performance with unmatched durability, giving you:
Higher boiler efficiency
Reduced maintenance and downtime
Long-term operational savings
Try and buy
Not yet convinced? We offer a free, no‑obligation trial period of the Heracles Jet360 nozzle, allowing you to evaluate its performance in your specific application. After the trial period, you can either purchase the nozzle or return it.
Request a Jet360 nozzle for testing!
